Knot RefinementΒΆ

New in version 5.1.

Knot refinement is simply the operation of inserting multiple knots at the same time. NURBS-Python (geomdl) supports knot refinement operation for the curves, surfaces and volumes via operations.refine_knotvector() function.

One of the interesting features of the operations.refine_knotvector() function is the controlling of knot refinement density. It can increase the number of knots to be inserted in a knot vector. Therefore, it increases the number of control points.

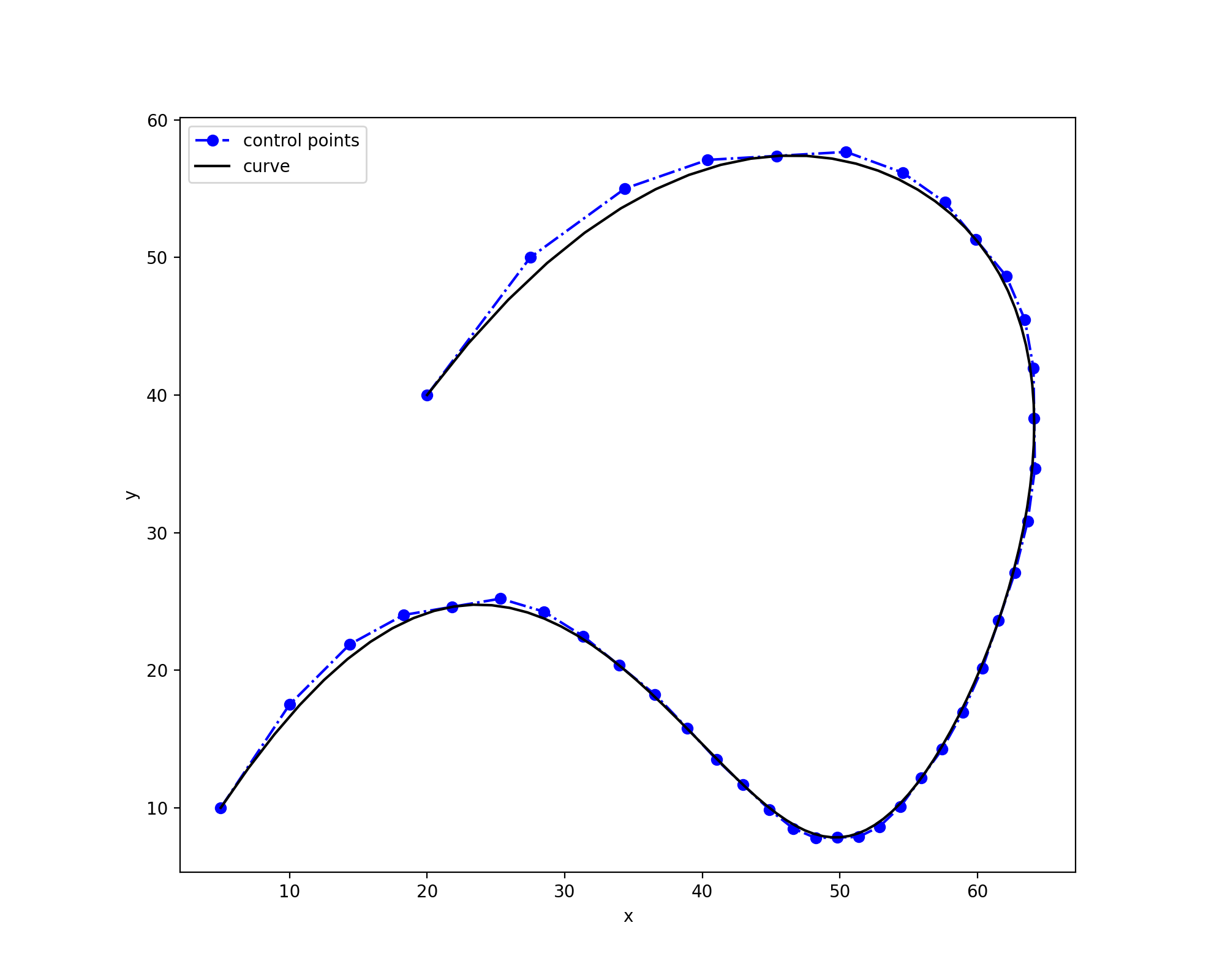

The following code snippet and the figure illustrate a 2-dimensional spline curve with knot refinement:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
from geomdl import BSpline
from geomdl import utilities
from geomdl import exchange
from geomdl.visualization import VisMPL

# Create a curve instance
curve = BSpline.Curve()

# Set degree
curve.degree = 4

# Set control points
curve.ctrlpts = [
    [5.0, 10.0], [15.0, 25.0], [30.0, 30.0], [45.0, 5.0], [55.0, 5.0],
    [70.0, 40.0], [60.0, 60.0], [35.0, 60.0], [20.0, 40.0]
]

# Set knot vector
curve.knotvector = [0.0, 0.0, 0.0, 0.0, 0.0, 0.2, 0.4, 0.6, 0.8, 1.0, 1.0, 1.0, 1.0, 1.0]

# Set visualization component
curve.vis = VisMPL.VisCurve2D()

# Refine knot vector
operations.refine_knotvector(curve, [1])

# Visualize
curve.render()

(Source code, png, hires.png, pdf)

_images/knot_refinement-1.png

The default density value is 1 for the knot refinement operation. The following code snippet and the figure illustrate the result of the knot refinement operation if density is set to 2.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
from geomdl import BSpline
from geomdl import utilities
from geomdl import exchange
from geomdl.visualization import VisMPL

# Create a curve instance
curve = BSpline.Curve()

# Set degree
curve.degree = 4

# Set control points
curve.ctrlpts = [
    [5.0, 10.0], [15.0, 25.0], [30.0, 30.0], [45.0, 5.0], [55.0, 5.0],
    [70.0, 40.0], [60.0, 60.0], [35.0, 60.0], [20.0, 40.0]
]

# Set knot vector
curve.knotvector = [0.0, 0.0, 0.0, 0.0, 0.0, 0.2, 0.4, 0.6, 0.8, 1.0, 1.0, 1.0, 1.0, 1.0]

# Set visualization component
curve.vis = VisMPL.VisCurve2D()

# Refine knot vector
operations.refine_knotvector(curve, [2])

# Visualize
curve.render()

(Source code, png, hires.png, pdf)

_images/knot_refinement-2.png

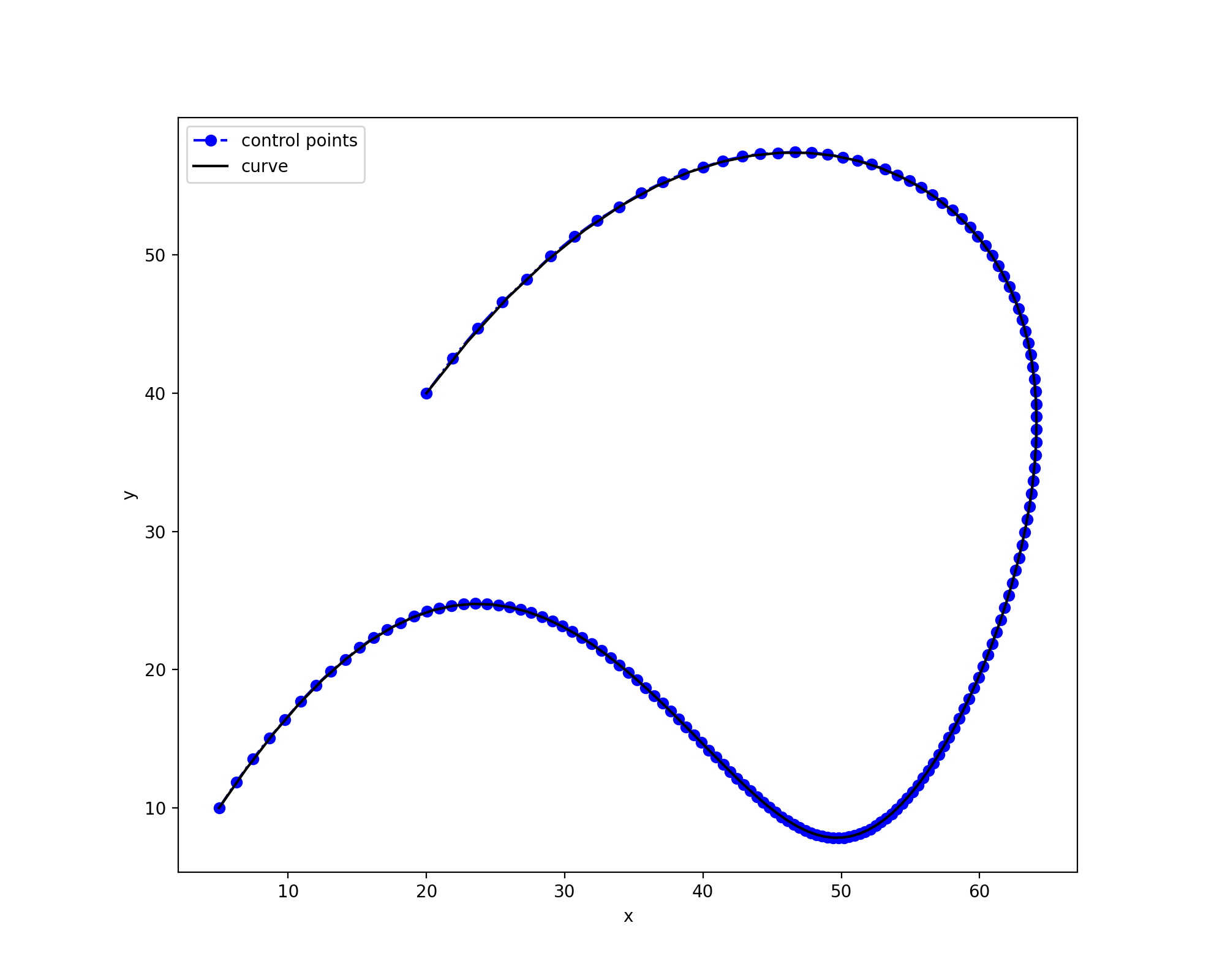

The following code snippet and the figure illustrate the result of the knot refinement operation if density is set to 3.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
from geomdl import BSpline
from geomdl import utilities
from geomdl import exchange
from geomdl.visualization import VisMPL

# Create a curve instance
curve = BSpline.Curve()

# Set degree
curve.degree = 4

# Set control points
curve.ctrlpts = [
    [5.0, 10.0], [15.0, 25.0], [30.0, 30.0], [45.0, 5.0], [55.0, 5.0],
    [70.0, 40.0], [60.0, 60.0], [35.0, 60.0], [20.0, 40.0]
]

# Set knot vector
curve.knotvector = [0.0, 0.0, 0.0, 0.0, 0.0, 0.2, 0.4, 0.6, 0.8, 1.0, 1.0, 1.0, 1.0, 1.0]

# Set visualization component
curve.vis = VisMPL.VisCurve2D()

# Refine knot vector
operations.refine_knotvector(curve, [3])

# Visualize
curve.render()

(Source code, png, hires.png, pdf)

_images/knot_refinement-3.png

The following code snippet and the figure illustrate the knot refinement operation applied to a surface with density value of 3 for the u-direction. No refinement was applied for the v-direction.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
from geomdl import NURBS
from geomdl import operations
from geomdl.visualization import VisMPL


# Control points
ctrlpts = [[[25.0, -25.0, 0.0, 1.0], [15.0, -25.0, 0.0, 1.0], [5.0, -25.0, 0.0, 1.0],
            [-5.0, -25.0, 0.0, 1.0], [-15.0, -25.0, 0.0, 1.0], [-25.0, -25.0, 0.0, 1.0]],
           [[25.0, -15.0, 0.0, 1.0], [15.0, -15.0, 0.0, 1.0], [5.0, -15.0, 0.0, 1.0],
            [-5.0, -15.0, 0.0, 1.0], [-15.0, -15.0, 0.0, 1.0], [-25.0, -15.0, 0.0, 1.0]],
           [[25.0, -5.0, 5.0, 1.0], [15.0, -5.0, 5.0, 1.0], [5.0, -5.0, 5.0, 1.0],
            [-5.0, -5.0, 5.0, 1.0], [-15.0, -5.0, 5.0, 1.0], [-25.0, -5.0, 5.0, 1.0]],
           [[25.0, 5.0, 5.0, 1.0], [15.0, 5.0, 5.0, 1.0], [5.0, 5.0, 5.0, 1.0],
            [-5.0, 5.0, 5.0, 1.0], [-15.0, 5.0, 5.0, 1.0], [-25.0, 5.0, 5.0, 1.0]],
           [[25.0, 15.0, 0.0, 1.0], [15.0, 15.0, 0.0, 1.0], [5.0, 15.0, 5.0, 1.0],
            [-5.0, 15.0, 5.0, 1.0], [-15.0, 15.0, 0.0, 1.0], [-25.0, 15.0, 0.0, 1.0]],
           [[25.0, 25.0, 0.0, 1.0], [15.0, 25.0, 0.0, 1.0], [5.0, 25.0, 5.0, 1.0],
            [-5.0, 25.0, 5.0, 1.0], [-15.0, 25.0, 0.0, 1.0], [-25.0, 25.0, 0.0, 1.0]]]

# Generate surface
surf = NURBS.Surface()
surf.degree_u = 3
surf.degree_v = 3
surf.ctrlpts2d = ctrlpts
surf.knotvector_u = [0.0, 0.0, 0.0, 0.0, 1.0, 2.0, 3.0, 3.0, 3.0, 3.0]
surf.knotvector_v = [0.0, 0.0, 0.0, 0.0, 1.0, 2.0, 3.0, 3.0, 3.0, 3.0]
surf.sample_size = 30

# Set visualization component
surf.vis = VisMPL.VisSurface(VisMPL.VisConfig(alpha=0.75))

# Refine knot vectors
operations.refine_knotvector(surf, [3, 0])

# Visualize
surf.render()

(Source code, png, hires.png, pdf)

_images/knot_refinement-4.png
