Surface GeneratorΒΆ

NURBS-Python comes with a simple surface generator which is designed to generate a control points grid to be used as a randomized input to BSpline.Surface and NURBS.Surface. It is capable of generating customized surfaces with arbitrary divisions and generating hills (or bumps) on the surface. It is also possible to export the surface as a text file in the format described under File Formats documentation.

The classes CPGen.Grid and CPGen.GridWeighted are responsible for generating the surfaces.

The following example illustrates a sample usage of the B-Spline surface generator:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
from geomdl import CPGen
from geomdl import BSpline
from geomdl import utilities
from geomdl.visualization import VisMPL
from matplotlib import cm

# Generate a plane with the dimensions 50x100
surfgrid = CPGen.Grid(50, 100)

# Generate a grid of 25x30
surfgrid.generate(50, 60)

# Generate bumps on the grid
surfgrid.bumps(num_bumps=5, bump_height=20, base_extent=8)

# Create a BSpline surface instance
surf = BSpline.Surface()

# Set degrees
surf.degree_u = 3
surf.degree_v = 3

# Get the control points from the generated grid
surf.ctrlpts2d = surfgrid.grid

# Set knot vectors
surf.knotvector_u = utilities.generate_knot_vector(surf.degree_u, surf.ctrlpts_size_u)
surf.knotvector_v = utilities.generate_knot_vector(surf.degree_v, surf.ctrlpts_size_v)

# Set sample size
surf.sample_size = 100

# Set visualization component
surf.vis = VisMPL.VisSurface(ctrlpts=False, legend=False)

# Plot the surface
surf.render(colormap=cm.terrain)

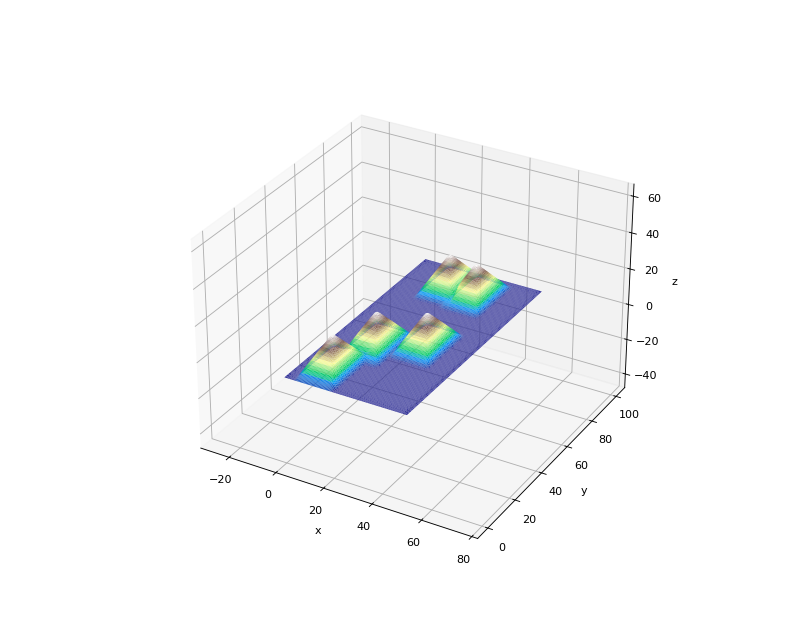

(Source code, png, hires.png, pdf)

_images/surface_generator-1.png

CPGen.Grid.bumps() method takes the following keyword arguments:

  • num_bumps: Number of hills to be generated
  • bump_height: Defines the peak height of the generated hills
  • base_extent: Due to the structure of the grid, the hill base can be defined as a square with the edge length of a. base_extent is defined by the value of a/2.
  • base_adjust: Defines the padding of the area where the hills are generated. It accepts positive and negative values. A negative value means a padding to the inside of the grid and a positive value means padding to the outside of the grid.
